Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง
whatsapp:0086 18588475571
วีแชท: 0086 18588475571
Skype: sales10@aixton.com
หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| ขนาด | 45 มม. | หน้า | Tungsten Carbide TC |
|---|---|---|---|
| วัสดุที่นั่ง | Tungsten Carbide TC | วัสดุอีลาสโตเมอร์ | ไวตัน เอฟพีเอ็ม |
| ชิ้นส่วนโลหะ | SS316 ฮาสเตลลอย ซี AM350 | แรงดันสูงสุด | ≤ 1.5mpa |
| ความเร็วสูงสุดของสาย | ≤ 15m/s | ช่วงอุณหภูมิ | -20 ° C-180 ° C |
| รหัส HTS | 8484.20.00 | รุ่นที่เข้ากันได้ | Flygt 1335.181, 2024, 2056 ฯลฯ |
| การปฏิบัติตามมาตรฐาน | DIN24960, ISO3069, EN12576, API682 | ตราประทับรอง | ไวตัน เอฟพีเอ็ม |
| วัสดุโอริง | ขึ้นอยู่กับแอปพลิเคชัน | ประเภทผลิตภัณฑ์ | ซีลกลไก |
| ทดแทนสำหรับ | ฟลายจีที 3085 | ||
| เน้น | Replace Flygt 1330 Pump Mechanical Seal,DIN24960 Standard Mechanical Seal,ISO3069 Standard Upper Seal |
||
รายละเอียดสินค้า

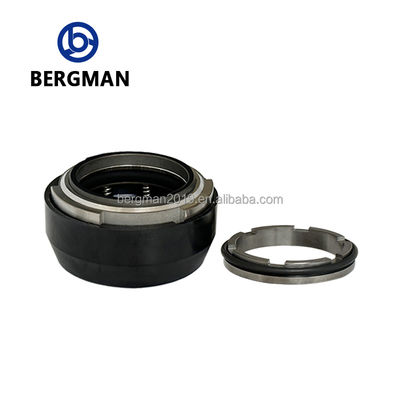

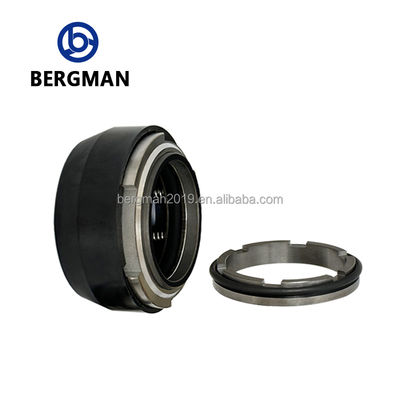

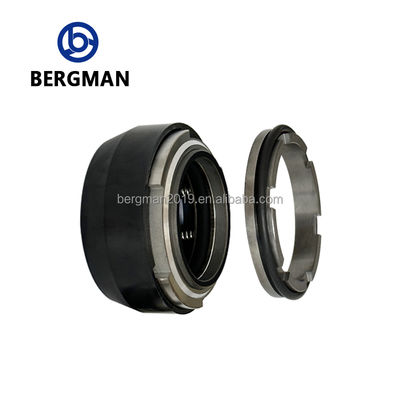

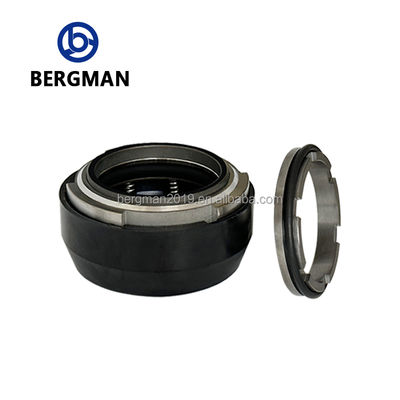

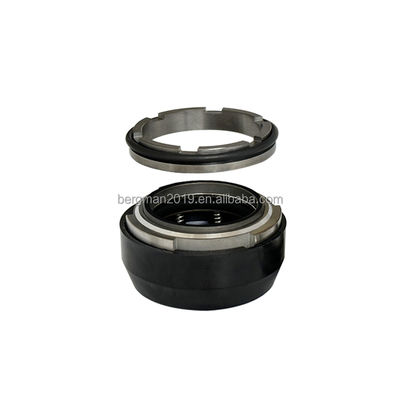

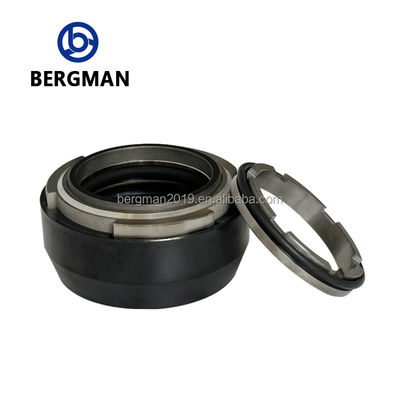

Replace Flygt 45mm 1330 Pump Mechanical Seal Upper Seal
Product Overview
This mechanical seal is designed as a replacement for Flygt pump models, offering high-quality materials and precise engineering for reliable performance in demanding industrial applications.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Name | Mechanical Seal | Size | Standard size 20mm |
| Brand | BERGMAN | Model | 45mm, 25mm |
| Pressure | ≤ 1.5mpa | Line Speed | ≤ 15m/s |
| Temperature | -20°C-180°C (Depends on O-ring material) | Application | Flygt pump |
| Face Material | Tungsten carbide TC | Seat Material | Tungsten carbide TC |
| Secondary Seal | VITON FPM | Metal Parts | SS316 Hastelloy C AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization service |
Compatible Flygt Pump Models
This mechanical seal is compatible with a wide range of Flygt pump models including:
- 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066
- 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102
- 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630
- 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065
- 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126
- 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230
- 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400
- 3501, 3530, and full range of Flygt pump mechanical seals
Key Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Can replace original seals with cost-effective alternatives
- Large inventory with factory-direct pricing for faster delivery
- Compatible with Burgman, John Crane, AES and other major brands
- OEM and customized services available
- Premium materials including tungsten carbide, silicon carbide, and carbon graphite
Product Images
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has been in operation since 1996. With over 20 years of development, we have established ourselves as a leading manufacturer of high-quality mechanical seals.
Our company has passed the quality management system GB/T19001-2016 idt ISO9001:2015 certification and offers a comprehensive range of mechanical seals including:
- Pump mechanical seals
- Axe mechanical seals
- Fluid mechanical seals
- Metal bellows mechanical seals
- Various sealing materials including cemented carbide, silicon carbide, and carbon graphite
Our Facilities
- 2,000+ square meter warehouse with large inventory
- Modern advanced machine tool equipment
- Dust-free workshop environment
- Comprehensive inspection equipment
- Efficient assembly line operations
Application Range
Our mechanical seals are widely used in:
- Pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps
- Petroleum, chemical, aerospace, pharmaceutical, and food industries
- Agricultural irrigation systems
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days for production.
Q: Do you provide free samples?
A: Samples are typically not free, but sample costs can be refunded after order placement.
Q: What are your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
