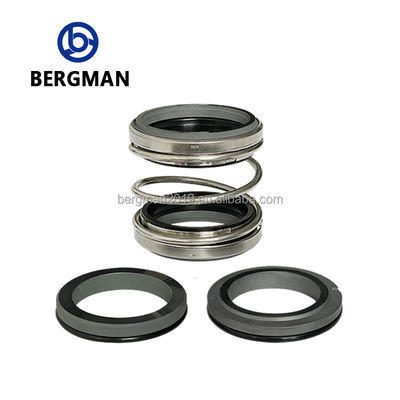

BERGMAN 560D-70mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
| Place of Origin | CN:GUANGZHOU |
|---|---|
| ชื่อแบรนด์ | BERGMAN |
| Model Number | 560D |
| Minimum Order Quantity | 1 |
| ราคา | $50-80 |
ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง
whatsapp:0086 18588475571
วีแชท: 0086 18588475571
Skype: sales10@aixton.com
หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| Size | 70mm | Model | 560D |
|---|---|---|---|
| Pressure limit | ≤ 0.3mpa | Temperature range | -20°C-70°C |
| Line speed | ≤ 5m/s | Face material | CAR SIC |
| Seat material | CER SIC | Secondary seal | NBR VITON |
| Metal parts | SS304 SS316 | Shaft sizes | 25/30, 30/35, 40/45, 45/50 |
| Standard sizes | 14/15/16mm, 17/18/19mm, 20/25/30mm, 35/40/45mm, 50/60/70mm | Max temperature | 120°C (depends on O-ring) |
| Max line speed | ≤ 10m/s | Application type | Rotary pump |
| Material options | Tungsten carbide, silicon carbide, carbon graphite, alumina | ||
| เน้น | 70mm rotary pump mechanical seal,WQ submersible pump seal,BERGMAN mechanical seal with warranty |
||
รายละเอียดสินค้า
ED 560D-70mm Facing Size EBARA Kawami WQ Submersible Pump Mechanical Seal
Product Specifications
| Attribute | Value |
|---|---|
| Size | 70mm |
| Country of Origin | Guangzhou, China |
| Brand | BERGMAN |
| Model | 560D |
| Application | Rotary Pump |
| Pressure | ≤ 0.3mpa |
| Temperature | -20°C to 70°C |
| Line Speed | ≤ 5m/s |
Product Description
High-quality mechanical seal designed for EBARA pumps, Southern pumps, Hejian pumps and most WQ submersible pumps. Available in various sizes from 13mm to 70mm.
Key Features
- Face material: CAR SIC
- Seat material: CER SIC
- Secondary seal options: NBR, VITON
- Metal parts: SS304, SS316
- ISO9001-2015 certified
- OEM customization service available
Technical Specifications
| Parameter | Value |
|---|---|
| Standard Sizes | 14/15/16/17/18/19/20/25/30/35/40/45/50/60/70mm |
| Temperature Range | -20°C to 120°C (depends on O-ring material) |
| Line Speed | ≤ 10m/s |
Product Images
Applications
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for industries including petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation.
Our Advantages
- 2000+ square meter warehouse with large inventory
- Factory-direct pricing with excellent quality
- Fast delivery times
- Compatible with world-renowned brands (Burgman, John Crane, AES)
- Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has been in operation since 1996. With ISO9001:2015 certification, we specialize in mechanical seals for various applications including pumps, fluid systems, and automotive components.
Production Capabilities
- Modern advanced machine tool equipment
- Dust-free workshop environment
- Comprehensive inspection and pressure testing
- Assembly line operations
Packaging & Shipping
We offer various packaging options including customized packaging for large orders. Shipping methods include air, sea, and express delivery.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days depending on order quantity.
Contact Us
International Trade:
Li Wei: +86-15622176299
Yang Yingjie (WeChat/WhatsApp): +86-15627223988
Yang Aijun (WeChat/WhatsApp): +86-13602719849
Email: bergman168@outlook.com
